CYBER-SECURED IP-VIDEO CAMERAS WITH ARTIFICIAL INTELLIGENCE

Our systems provide security at various sites of different size and purpose both in Russia and abroad

ROBODEUS

A 50-CORE HETEROGENEOUS SoC FOR
EMBEDDED SYSTEMS AND ROBOTICS


The performance of neural network algorithms operating on RoboDeus SoC is about 16 Tflops. Robodeus can be used to build smart multi-sensory embedded systems.

SCYTHIAN

A SYSTEM-ON-CHIP FOR MOBILE
AND EMBEDDED COMMUNICATION,
NAVIGATION AND MULTIMEDIA SYSTEMS


Scythian SoC can be used for building telecommunication, navigation and multimedia applications, robotic systems, tablet PCs, smart cameras and monitoring systems as well as for multi-sensory signal processing.

ELIoT

A SYSTEM-ON-CHIP
FOR THE INTERNET OF THINGS


ELIoT SoC can be used in low-power applications to ensure trust in IoT networks.

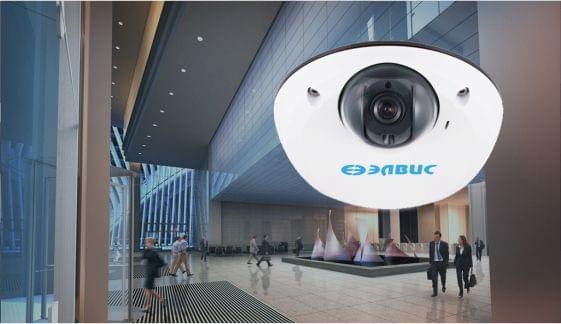

MINI-DOME

This fixed mini-Dome camera serves for video surveillance of small areas inside buildings. Smaller size makes it less visible on the ceiling or the walls.

The camera is based on our proprietary 2nd-generation processor.

MINI-DOME

SMALL FIXED DOME CAMERA

Embedded video analysis:

  • Movement detector

  • Line crossing

  • Zone entering/ leaving

SPECIFICATIONS

Parameter

Value

Parameter

Value

Matrix

CMOS 1/ 2.9"

Network-based storage

Support of embedded microSD/ microSDHC/ microSDXC-card (128 GB)**

Sensitivity

0.1 lx

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, 802.1X, QoS

Maximum resolution

FHD (1920 x 1080)

Main functions

Anti-Flicker, mirroring, rotation, masking

Viewing angles

Horizontal: 110° Vertical: 65°

Reset button

Yes

Lens

М12

Network interface

10,100,1000 Base-T

Focal distance*

2,8 mm

Power consumption

PoE: (802.3af, from 36 to 57 V), max. 6 W
DC 12 W, max. 5 W

Diaphragm

F2.0

API

ONVIF (PROFILE S)

Compression format

Motion JPEG, JPEG, H.264

Simultaneous viewing in the real-time mode

Up to 3 users

Frame rate

30 FPS

Security

User authentication (ID and PW), host authentication (Mac), IP-address filtering, HTTPS, IEEE 802.1x access control

Multi-threading

2 threads

Recording the video stream on a memory card

Yes

Size

110х65 mm

Weight

0,4 kg

* lenses with various focal distance are available
** the delivery kit does not contain a map
